Adding the ability to interact with our charts makes it easier to see what is happening with the data. Hover tools are an easy way to add some extra functionality to our visualizations.
Related Discussions
Have questions about this video? Start a discussion with the community and Treehouse staff.
Sign upRelated Discussions
Have questions about this video? Start a discussion with the community and Treehouse staff.
Sign up
[MUSIC]
0:00

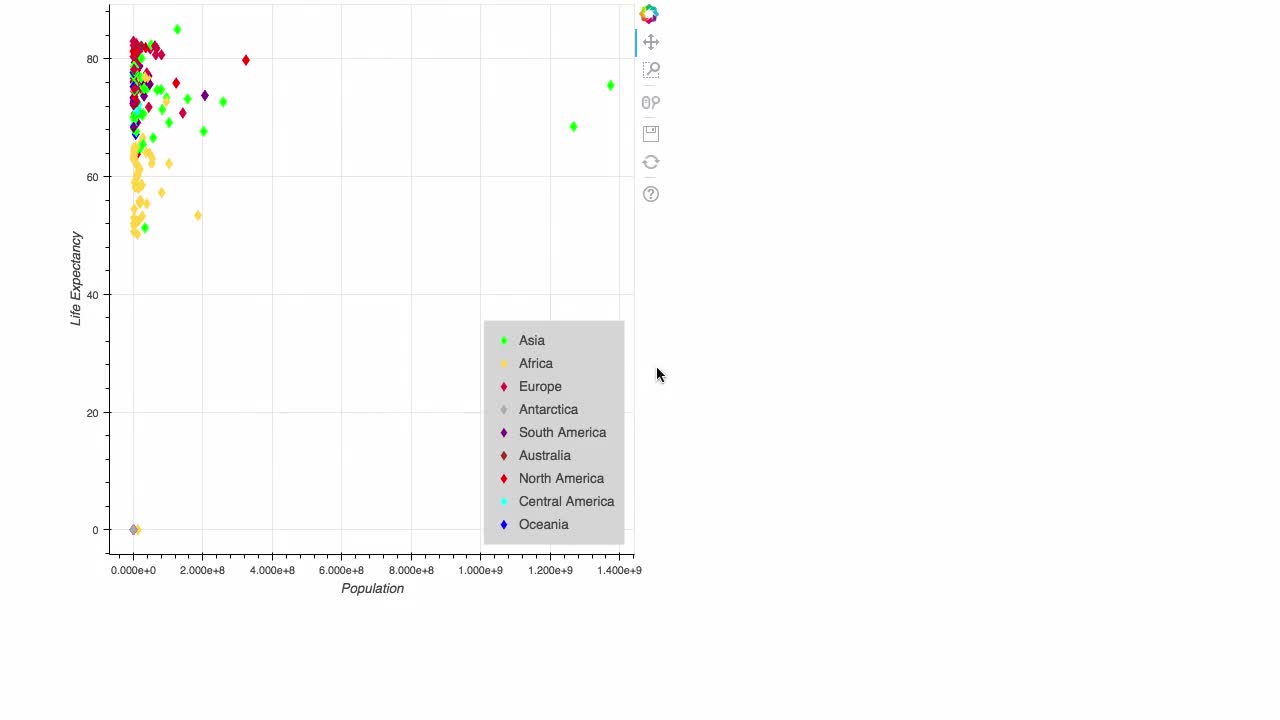

If you recall, when we last looked at our
plot, we had our legends separated by
0:04
color in a continental bucket and
I've added in an associated legend.
0:09
However, we are still having some issues
with our data visualization in terms of
0:14
being able to tell which glyph is
associated with which country.
0:18
Further, while the labels on the x-axis
give us a general idea of the population,
0:22
it would be helpful to know the exact
number associated with a given country.
0:26
With glyphs representing
all of our countries and
0:31
several of them plotted close together.
0:34
Adding labels to each glyph would
clutter up our visualization.
0:37
Bokeh provides a solution to this with
hover tools, which will allow us to hover
0:40
over a given data point and have the
associated data shown about that country.
0:45
Let's have a look from where we left off.
0:49
To start working with hover tools, we need
to import HoverTool from bokeh.models.
0:51
If you remember back to previous video,
0:56
we had a parameter tools
in our figure object.
0:58
We're going to want to add that back in,
1:01
along with the tools we want to include
with the new addition of our hover tool.
1:03
Fit to our plot
1:06
Put in tools, we want pan,
1:10
wheel_zoom, box_zoom,
1:15
reset, hover, and save.
1:20
That adds in our hover tool to the other
tools we have seen and are used to.
1:25
I think it is probably time as
well to add a title to our plot,
1:30
which can be done with the title parameter
being passed into our figure object.
1:34
We'll call it Population
versus Life Expectancy.
1:39
And we're still showing our plot and
have all the same configurations for
1:45
our color mapper and for
our legend and when we run our script.
1:51
And hover over our data points.
2:00
We got a nice little pop-out tool tip,
giving us some information.
2:01
So, it is slightly helpful, right?
2:04
It shows us the index number, the x and
y values of our charted data, or
2:06
population and life expectancy, and
the data points on the plot itself.
2:10
Now we could use that index number
to go look in our data to determine
2:15
that index 39 for example is China.
2:20
However, I don't know about you, but
2:23
that seems like a lot off effort to have
to look up each point in our raw data.
2:24
Let's connect the information from our
raw data directly to the tool tip.
2:28
We need to select our hover tools,
and adjust its visual attributes.
2:32
Since it is assigned to our figure object,
we can select it as follows.
2:37
hover=plot.select_one and
we'll assign it for HoverTool.
2:44
Let's take a quick look at the
documentation for styling tools in Bokeh.
2:52
I've included a link in the teacher's
notes to the Bokeh documentation as well.
2:58
If we scroll down about two
thirds of the way on the page,
3:01
we will find a section
called setting tool visuals.
3:05
And on the hover tool section there,
3:09
it shows us that we want to pass in
a list of couples into our tool tip.
3:11
Now we can access our data items is
in the @ sign special character.
3:15
I think for this particular plot,
3:20
adding in the country name in English as
well as the values of our data points,
3:22
populations and life expectancy,
would be a good start for our tool tip.
3:26
We want to assign to hover.tooltips.
3:31
Country name in English,
which is the label for that.
3:44
And assign their data point.
3:54
We'll do this thing for Population.
3:59
And Life Expectancy, in years.
4:11
Now when we run our script and
hover over our data point,
4:24
we get the country name, population,
and life expectancy in our tool tip.
4:28
You'll notice that if we hover over
some of the densely charted data,
4:34
we will get multiple tool tips covering
a range of countries that are pretty close
4:37
to where the mouse is pointing.
4:41
This is a great opportunity to use
some of the zoom tools, to zoom in on
4:42
an area of our plot and to be able to get
a closer look at individual country data.
4:49
When we're done, we can click on
the reset tool to reset our display.
4:58
Nice work.
5:04
I think just looking great and is much
easier to gather information from and
5:05
about our data set versus looking
at rows and rows of data.
5:10
We can take up visualization
a bit further though and
5:14
examine other aspects of our data as well.
5:17
Let's have a short break,
stand up move around and stretch a bit and
5:20
come back to see some
options Bokeh provides us for
5:23
charting multiple data points from
the same data source at the same time.
5:26
